Name: 8 Gang Boat Switch Panel 12V 24V Touch Panel Rocker Switch Panel With LED Backlighting
Brand: Shenzhen Nekeke Industrial Co., Ltd.
SKU: AS03
Price: 38.00 USD
Availability: InStock

Home > Products > Marine Switch Panel >

8 Gang Boat Switch Panel 12V 24V Touch Panel Rocker Switch Panel With LED Backlighting

8 Gang Boat Switch Panel 12V

LED Backlighting Rocker Switch Panel

marine touch control switch panel

Place of Origin:

China

Brand Name:

NEKEKE

Model Number:

AS03

Chat Now

Request A Quote

Product Details

Waterproof:

IP66

Material:

ABS, Aluminum, Or Stanless Steel

Color:

Black

Merchanical Life:

10000 Cycles

Max. Continuous Load:

AC 125V/10A, 12V/20A, 24V/10A

Fit For:

Car, RV, ATV Marine Electronic System Control

Highlight:

8 Gang Boat Switch Panel 12V

LED Backlighting Rocker Switch Panel

marine touch control switch panel

Payment & Shipping Terms

Minimum Order Quantity

5 pcs

Price

USD28-48 / pc

Packaging Details

Carton/Blister Package

Delivery Time

5-8 days

Payment Terms

T/T,Western Union

Supply Ability

500 pcs per month

ABS Material 4 Gang Marine Switch Panel 12 Volt Toggle Rocker Switch Panel For Boat

Chat Now

Marine Waterproof 12v Switch Panel With Dual USB Socket Overload Protection

Chat Now

4 Gang Waterproof Rocker Switch Panel Box Dual USB Socket Mixing Panel For Boat

Chat Now

12V Marine Boat Switch Panel With Cigarette Lighter , Custom Marine Electrical Panels

Chat Now

+86-13724390917

jenny@nekeke.com

Chat Now

Product Description

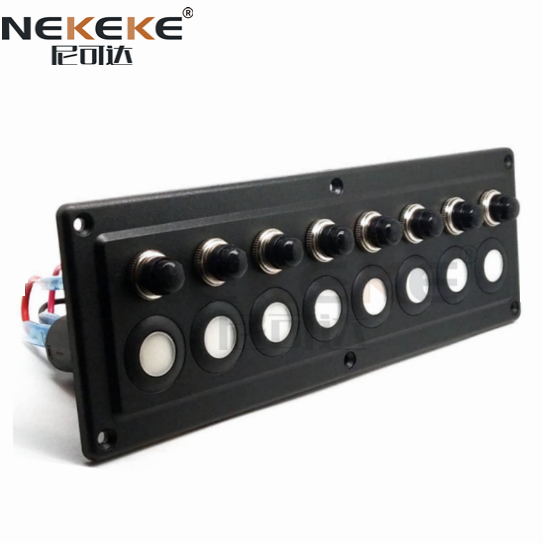

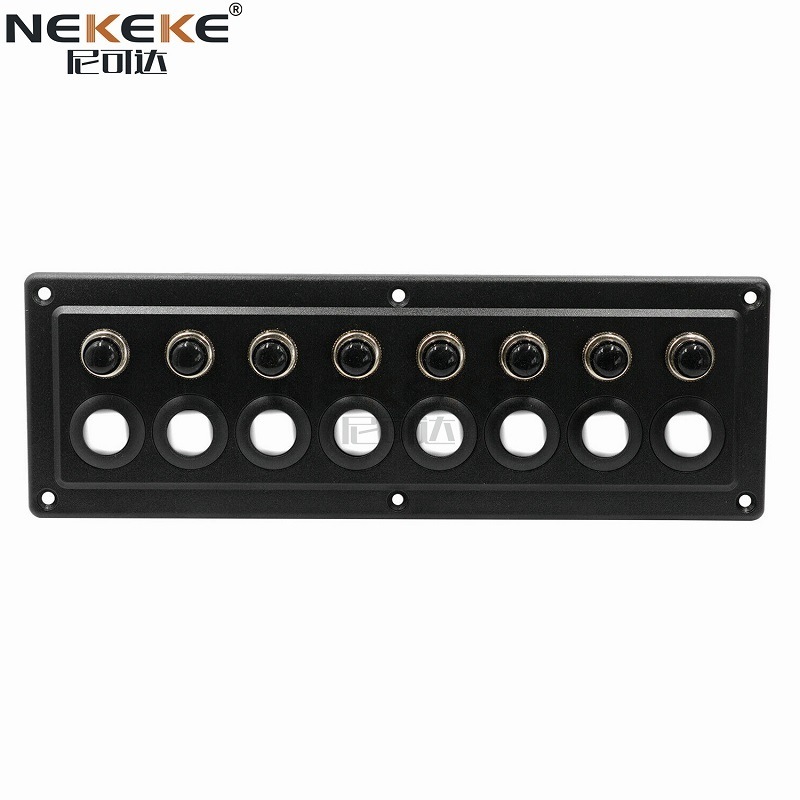

8 Gang LED Back Light Marine Switch Panel 12V 24V Touch Panel Rocker Switch

Marine Switch Panel Description

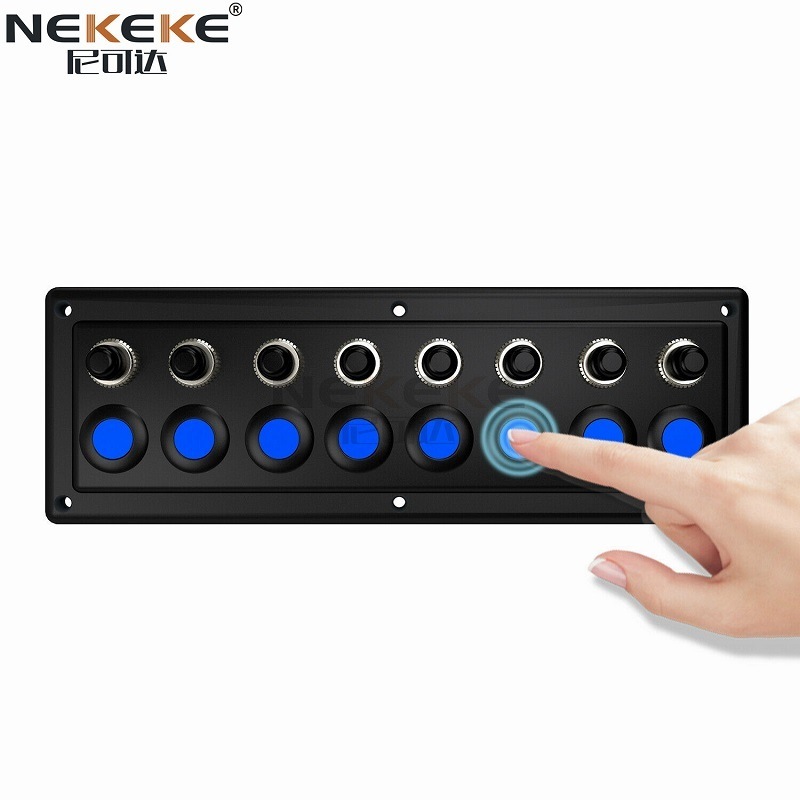

This high-performance marine switch panel features touch control functionality with LED backlighting, designed for reliable operation in marine and vehicle applications.

Attribute	Specification
Product Name	Touch Control Panel
Weight	Approximately 390 grams
Material Composition	ABS, PC, and nylon construction with high/low-temperature resistant eco-friendly materials
Dimensions	21 x 9 x 10.2 cm (8.27 x 3.54 x 4.02 inches)
Cutout Size	17.9 x 4.7 cm (7.05 x 1.85 inches)
Number of Switches	6
Voltage Range	DC 12V to 24V
Current Ratings	20A at 12V, 10A at 24V
Operating Temperature	-25°C to 80°C

Key Features

Premium Construction: Made from temperature-resistant, flame-retardant materials for reliable performance in extreme conditions (-25°C to 80°C)
Intuitive Control: 6-position single-touch switch panel for easy management of multiple electrical devices
Enhanced Safety: Built-in short circuit and overheat protection for worry-free operation
Wide Compatibility: Works with most DC 12V-24V vehicles including marine vessels, RVs, trucks, and more

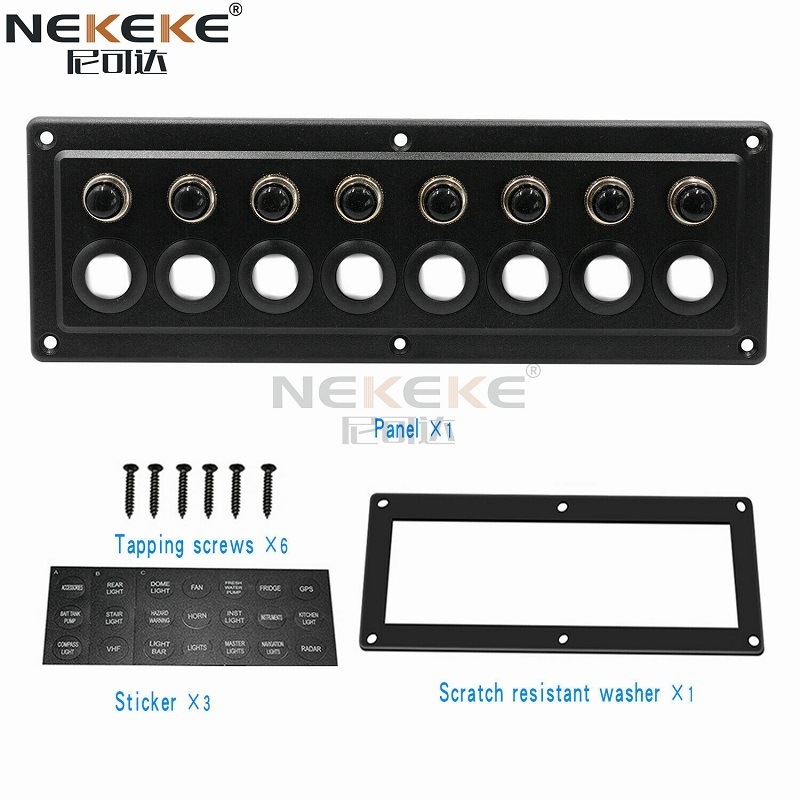

Simple Installation: Includes detailed wiring instructions, mounting hardware, and customization stickers
Durable Design: Rocker switch mechanism rated for up to 10,000 cycles with integrated cigarette lighter socket

Technical Specifications

Parameter	Value
Shell Material	ABS
Warranty	1 year
LED Color	Blue and White
Rating	DC 12V/24V 10A
Function	ON-OFF
Compatibility	Universal

Frequently Asked Questions

Q1. What is your policy regarding samples?

A: We offer free-of-charge samples for your evaluation.

Q2. Do you accept customized orders?

A: Absolutely! We can handle OEM and ODM projects. Our engineers have over 20 years of experience, and we can arrange sample testing upon your request.

Q3. What are your payment terms?

A: We require a 50% deposit via T/T, with the remaining 50% due before delivery. We will provide you with photos of the product and packaging prior to the final payment.

Q4. What shipping terms do you offer?

A: We offer various shipping terms, including EXW, FOB, CFR, CIF, and DDU.

Q5. What is your typical delivery timeframe?

A: Generally, our delivery time ranges from 15 to 30 days after receiving the advance payment. The exact timeframe will depend on the specific item and quantity of your order.
