Name: 5 Gang Marine Switch Panel IP65 Waterproof with 20A DC Overload Protection and Aluminum Construction
Brand: Shenzhen Nekeke Industrial Co., Ltd.
SKU: RSPW5
Price: 14.60 USD
Availability: InStock

Home > Products > Marine Switch Panel >

5 Gang Marine Switch Panel IP65 Waterproof with 20A DC Overload Protection and Aluminum Construction

IP65 Waterproof Marine Switch Panel

20A DC Overload Protection Boat Rocker Switch Panel

Aluminum Construction Waterproof Switch Panel

Place of Origin:

China

Brand Name:

NEKEKE

Certification:

CE, ROHS

Model Number:

RSPW5

Chat Now

Request A Quote

Product Details

Waterproof:

IP65

Material:

Aluminum

Color:

Black

LED Color:

Blue/Red/Green

Warranty:

1 Year

OEM:

Available

Highlight:

IP65 Waterproof Marine Switch Panel

20A DC Overload Protection Boat Rocker Switch Panel

Aluminum Construction Waterproof Switch Panel

Payment & Shipping Terms

Minimum Order Quantity

5 pcs

Price

USD10.6-18.7 / pc

Packaging Details

Carton

Delivery Time

5-8 days

Payment Terms

T/T,Western Union

Supply Ability

500 pcs per month

Marine Switch Panel 8 Gang IP65 Waterproof with Dual USB Charger and Voltmeter Aluminum Construction

Chat Now

5 Gang Marine Switch Panel IP65 Waterproof with 20A DC Overload Protection and Aluminum Construction

Chat Now

IP65 Waterproof Marine Switch Panel with Dual 2.1A USB Ports and LED Digital Voltmeter

Chat Now

IP65 Waterproof Aluminum Marine Switch Panel with QC3.0+USB-C Port for Boats and Trucks

Chat Now

+86-13724390917

jenny@nekeke.com

Chat Now

Product Description

5 Gang Switch Panel Marine Boat Rocker Switch Panel Waterproof With Breakers NEKEKE

This professional marine switch panel is engineered for 12-24V vehicle electrical systems, featuring comprehensive overload protection and waterproof construction ideal for demanding marine and automotive environments.

Product Specifications

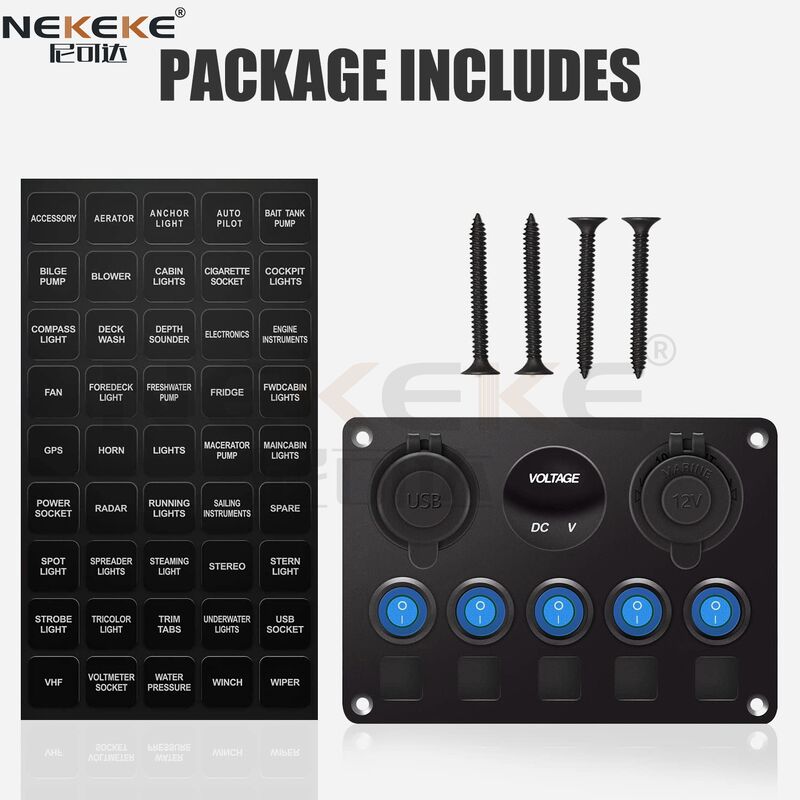

Designed for 12-24V electrical systems, this power panel includes four black mounting screws and a standard sticker for straightforward installation. It provides reliable overload protection rated at 20A DC for 12V systems and 10A DC for 24V systems. The USB charging output delivers up to 5V 3.1A for efficient device charging, with maximum output reaching 15A when the lamp socket is not in use. With IP65 waterproof rating and operating temperature range from -25°C to 80°C, it performs reliably in harsh conditions. The built-in voltmeter displays real-time voltage from 9-30V.

Technical Parameters

Brand Name	NEKEKE
Model Number	RSPW5
LED Color	Blue/Red/Green
Place of Origin	Guangdong, China
Max. Current	20A, 16A
Max. Voltage	12V/24V
Mechanical Life	100,000 cycles
Pins	3 Pin
Switch Function	ON-OFF
Contact Form	SPST
Waterproof Rating	IP65
Material	Aluminum
Operating Temperature	-20°C ~ 80°C
Usage	Low Voltage Applications

Our Service Commitment

Tailored professional recommendations based on market requirements and product specifications
Comprehensive quality control including batch inspections for consistent reliability
Fast and efficient delivery to maintain stable inventory levels
Secure protective packaging ensuring products arrive in perfect condition
Continuous improvement through customer feedback integration
Welcome samples and small trial orders for evaluation

Frequently Asked Questions

How are the products packaged?

Products are typically packed in neutral white boxes and outer brown cartons. Custom branded packaging is available for customers with legally registered patents upon receipt of authorization letter.

What payment methods do you accept?

Payment terms are 30% T/T in advance, with the remaining 70% payable prior to shipment. Product and packaging photos are provided before balance payment.

What delivery terms do you offer?

We support multiple Incoterms including EXW, FOB, CFR, CIF, and DDU.

What is the estimated lead time?

Standard production time ranges from 30 to 60 days after deposit receipt. Actual delivery time varies based on order specifications and quantities.

Do you offer OEM or custom production based on samples?

Yes, we manufacture products according to customer samples or technical drawings, including development of necessary molds and tooling.

What is your sample policy?

Samples are available for in-stock items. Sample costs and shipping fees are covered by the customer.
