Product Description

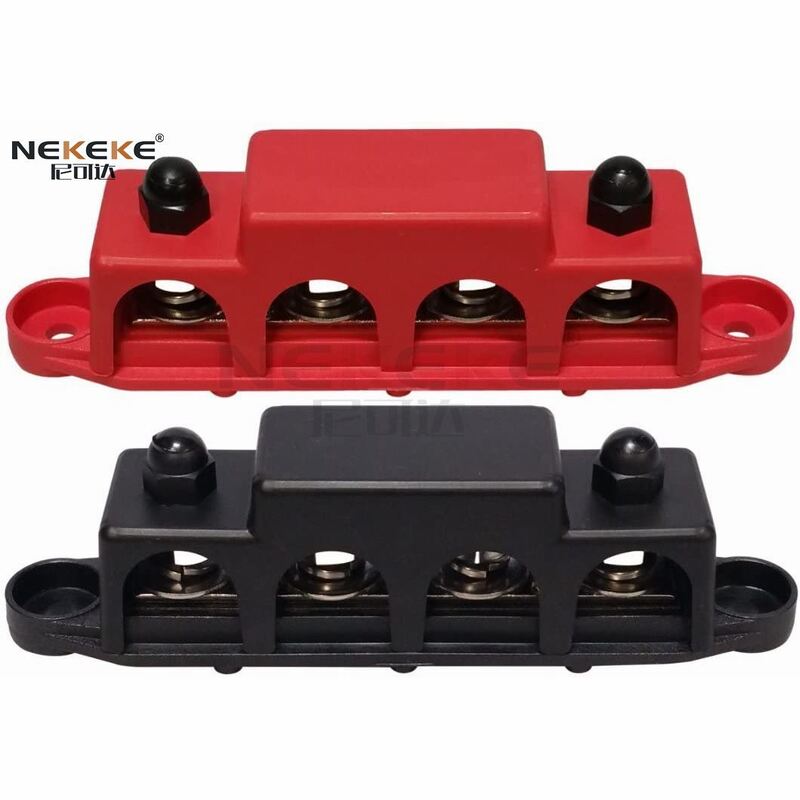

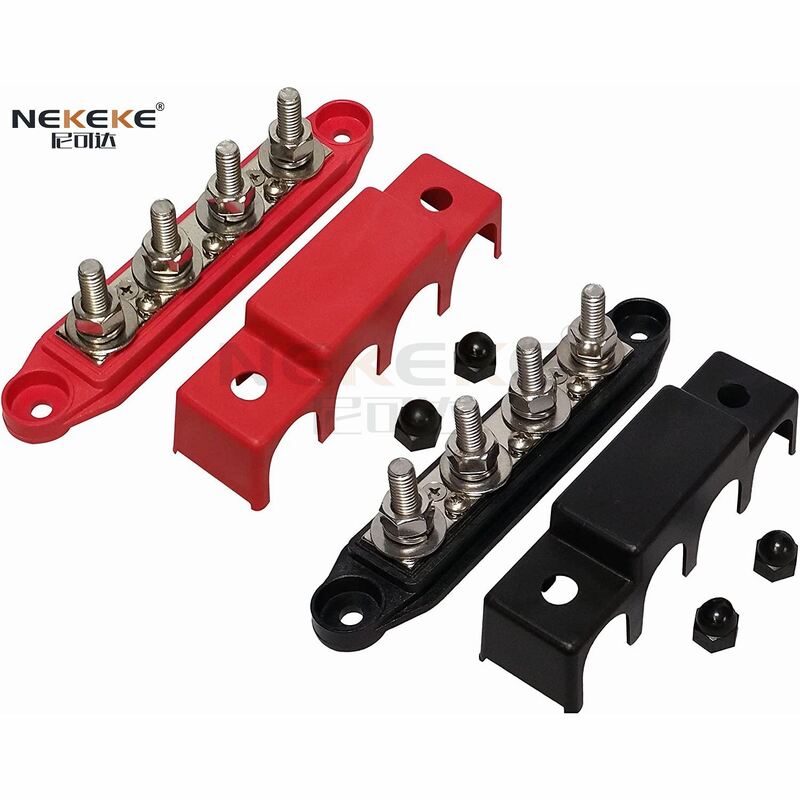

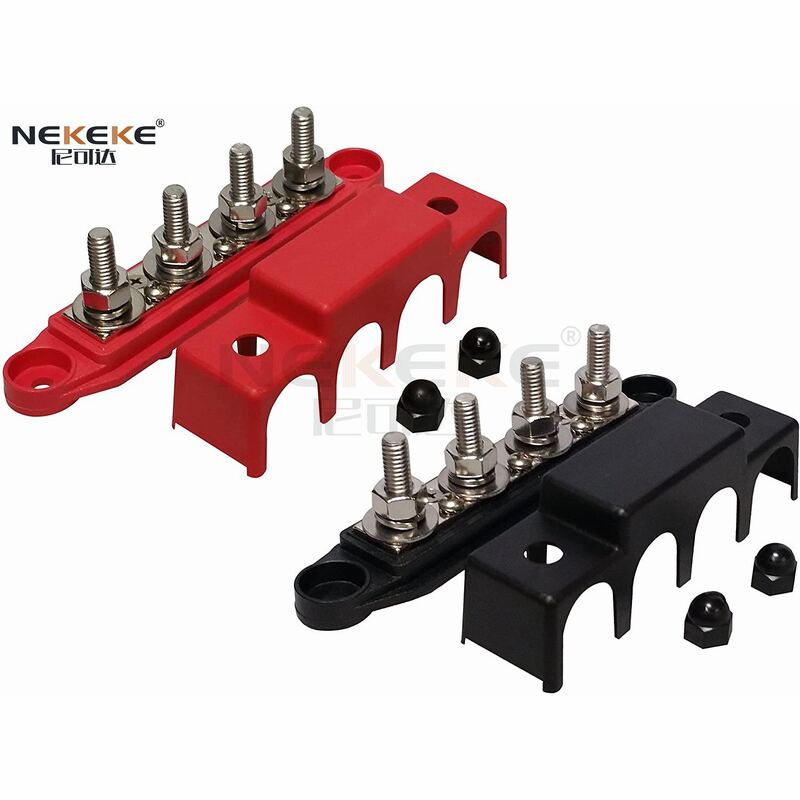

The NEKEKE BB1916C-4P marine bus bar is a compact power distribution terminal block built for reliable current splitting in boats, yachts, caravans, and automobiles. Its nickel-plated copper contact plate delivers low resistance and strong anti-rust performance, while the nylon and polycarbonate housing with stainless steel fasteners keeps every connection stable, safe, and easy to maintain in damp or corrosive environments.

Key Benefits

Nickel-plated copper plate ensures low contact resistance and efficient current flow
Anti-rust construction extends service life in marine and outdoor installations
Enlarged contact surface reduces energy loss and controls temperature rise
Protective cover shields terminals from dust, rain, and accidental short circuits
Push-in connection design simplifies wiring and speeds up installation
Stainless steel screws and studs resist corrosion under harsh conditions
Rated 130A AC / 150A DC for dependable power distribution
Works with 300V AC / 48V DC systems in boats, RVs, and vehicles

Technical Parameters

Product Name	Marine Bus Bar
Model Number	BB1916C-4P
Brand Name	NEKEKE
Max Voltage	300V AC/48V DC
Continuous Rating	130A AC/150A DC
Studs and Screws	Stainless Steel
Screws Size	8 x M4
Studs Size	2 x M6
Application	Distribution Line
Color	Black & red
Connection Method	Push-in Connection

Typical Applications

Boat and yacht electrical systems for battery and load distribution
Marine equipment power splitting and terminal connection
Caravan and RV 12V/24V auxiliary power networks
Automobile aftermarket wiring and terminal block installation

Quality and Service

Strict incoming material inspection and batch quality control
Custom sizes, colors, and terminal configurations available on request
Secure export packaging for safe worldwide delivery
Responsive technical support for wiring and installation questions
Sample orders welcome for evaluation before bulk purchase

Frequently Asked Questions

What is the maximum rating of the BB1916C-4P?

It is rated for 300V AC / 48V DC with a continuous current of 130A AC / 150A DC, suitable for most boat and vehicle power distribution needs.

What materials is the bus bar made of?

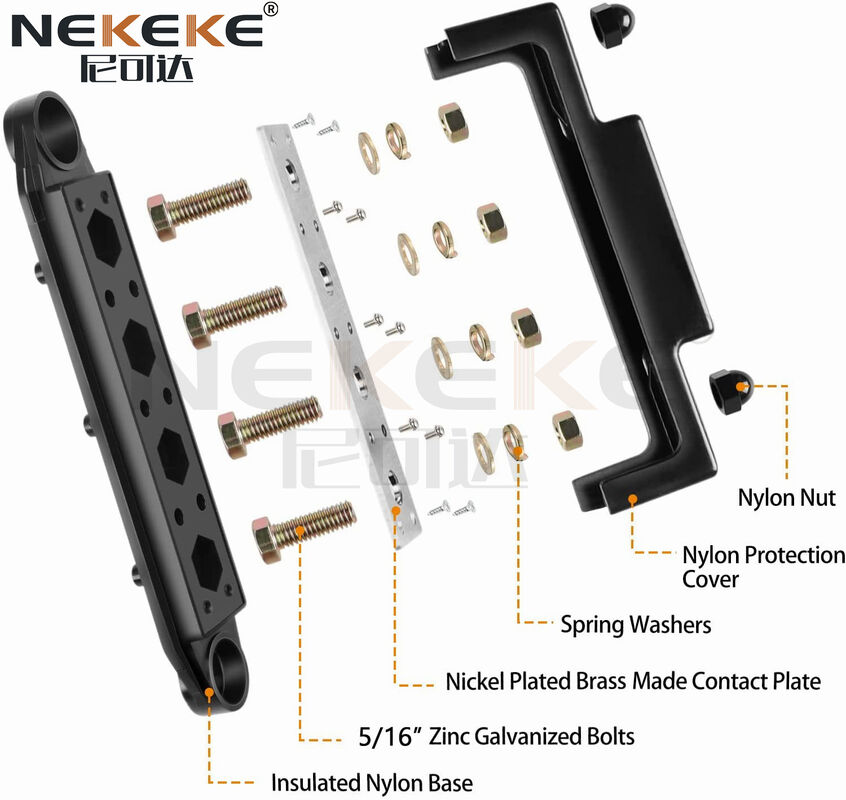

The contact plate is nickel-plated copper for low resistance, while the housing combines nylon and PC with stainless steel screws and studs for corrosion resistance.

Is it suitable for marine environments?

Yes, the anti-rust design and protective cover make it ideal for boats and yachts exposed to moisture, salt spray, and humidity.

What terminal sizes are available?

This model is equipped with 8 x M4 screws and 2 x M6 studs, offering flexible connection options for different cable sizes.

Do you offer customized bus bars?

Yes, we can customize dimensions, ratings, colors, and terminal layouts according to your drawings or samples, including mold development if needed.
