BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base

BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base

Anti Rust Marine Bus Bar

Waterproof Power Distribution Block

Nickel Plated Copper Terminal Block

Place of Origin:

China

Brand Name:

NEKEKE

Certification:

CE, RoHS

Model Number:

BB1928C-3P

Chat Now
Request A Quote
BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base BB1928C-3P Waterproof Marine Bus Bar Terminal Block with 300V AC/48V DC Rating and Flame Retardant PA66 Base
Product Details
Base Material:
PA66 (Flame Retardant)
Cover Material:
Polycarbonate (PC)
Max Voltage:
300V AC / 48V DC
Continuous Rating:
130A AC / 150A DC
Studs And Screws:
Stainless Steel
Waterproof:
Yes
Connection Method:
Push-in Connection
Color:
Black & Red
Application:
Boat, Yacht, RV, Marine Equipment
Highlight:

Anti Rust Marine Bus Bar

,

Waterproof Power Distribution Block

,

Nickel Plated Copper Terminal Block

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
5-8 days
Payment Terms
T/T,Western Union
RELATED PRODUCTS
Good price Custom Anti Rust Marine Bus Bar Automobiles Yacht Terminal Block Bus Bar online

Custom Anti Rust Marine Bus Bar Automobiles Yacht Terminal Block Bus Bar

Chat Now
Good price BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto online

BB1916C-4P Custom Anti Rust Marine Bus Bar 300V AC 48V DC Terminal Block Boat Yacht Auto

Chat Now
Good price 6-Position Double Row Solid Bus Bar With PC Cover - Nickel-plated Copper (RV/Marine/Auto) 100A-150A Capacity online

6-Position Double Row Solid Bus Bar With PC Cover - Nickel-plated Copper (RV/Marine/Auto) 100A-150A Capacity

Chat Now
Good price 6-Position Screw Fixed Single Power Distribution Bus Bar With PC Dustproof Cover - Nickel-plated Copper (RV/Marine/Solar) 100A-150A Capacity online

6-Position Screw Fixed Single Power Distribution Bus Bar With PC Dustproof Cover - Nickel-plated Copper (RV/Marine/Solar) 100A-150A Capacity

Chat Now
CONTACT US
+86-13724390917
jenny@nekeke.com
Chat Now
Product Description
BB1928C-3P Marine Bus Bar 300V AC/48V DC Terminal Block Power Distribution with Waterproof PC Cover
Product Overview
Model BB1928C-3P is a heavy-duty marine-grade power distribution bus bar engineered for reliable electrical management in boats, yachts, RVs, and other 12V-48V DC systems. Built with a flame-retardant PA66 base and a transparent polycarbonate protective cover, it keeps every terminal clean, insulated, and safe from moisture and dust even in harsh offshore environments.
Key Features
  • Corrosion-resistant construction: Nickel-plated copper contact plates resist rust and oxidation, ensuring stable conductivity and low energy loss over years of service.
  • Dustproof & splash-proof cover: The clear PC cap shields terminals from rain, salt spray, and accidental short circuits caused by loose tools or cables.
  • Tool-friendly wiring: Push-in connection design with stainless steel studs and screws allows fast, secure cable termination without special tools.
  • Heat-dissipation optimized: Enlarged contact surface lowers contact resistance and keeps temperature rise under control at continuous loads up to 150A DC.

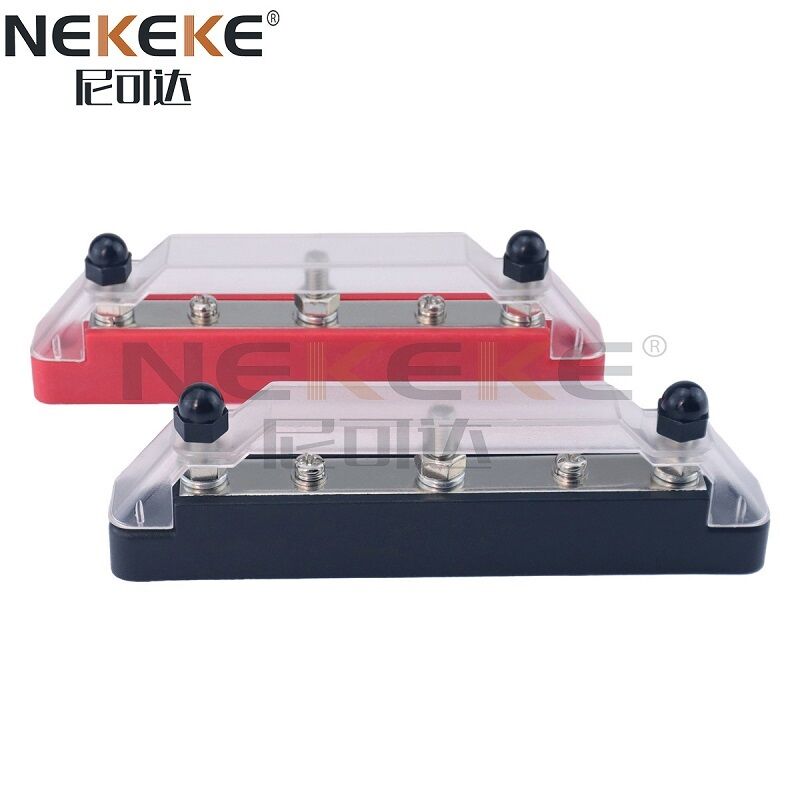

Marine Bus Bar showing corrosion resistant nickel plated copper construction
Technical Specifications
Parameter Value
Product Name Marine Bus Bar (3-Position)
Model Number BB1928C-3P
Base Material PA66 (Flame Retardant)
Cover Material Polycarbonate (PC)
Max Voltage 300V AC / 48V DC
Continuous Rating 130A AC / 150A DC
Studs & Screws Stainless Steel
Screws Size 8 x M4
Studs Size 2 x M6
Waterproof Yes (Covered Terminals)
Connection Method Push-in Connection
Color Black & Red
Technical specification diagram for Marine Bus Bar showing 300V AC and 48V DC ratings
Applications
Ideal for power distribution and circuit separation in automobiles, boats, yachts, marine equipment, caravans, and RVs. Whether you are rewiring a fishing boat console, upgrading a yacht battery bank, or organizing a caravan 12V distribution panel, the BB1928C-3P provides a neat, safe, and expandable solution.
OEM & Customization Service
We support OEM/ODM orders: custom terminal layouts, stud/screw sizes, color options, logo marking, and private-label packaging are all available. Our engineering team can also develop molds and fixtures based on your samples or drawings. With a weekly supply capacity of 500 pcs and delivery within 5-8 days, we are ready to support both trial orders and volume programs.
OEM customization options available for Marine Bus Bar from NEKEKE
Frequently Asked Questions
Q1: What is the minimum order quantity?
A: The MOQ is 1 piece, which makes it easy to test the product before placing a bulk order.
Q2: How do you pack the bus bars?
A: Each unit is protected in sturdy cartons; custom branded packaging is available with your authorization letter.
Q3: Which payment methods do you accept?
A: We accept T/T and Western Union. Photos of goods and packing are shared before final payment.
Q4: What delivery terms can you offer?
A: EXW, FOB, CFR, CIF, and DDU are all available based on your shipping requirements.
Q5: Can you produce according to my samples?
A: Yes. We manufacture per your samples or technical drawings and can create necessary molds and fixtures.
